CBN tool solutions for machining carburised steel materials

2023-12-06

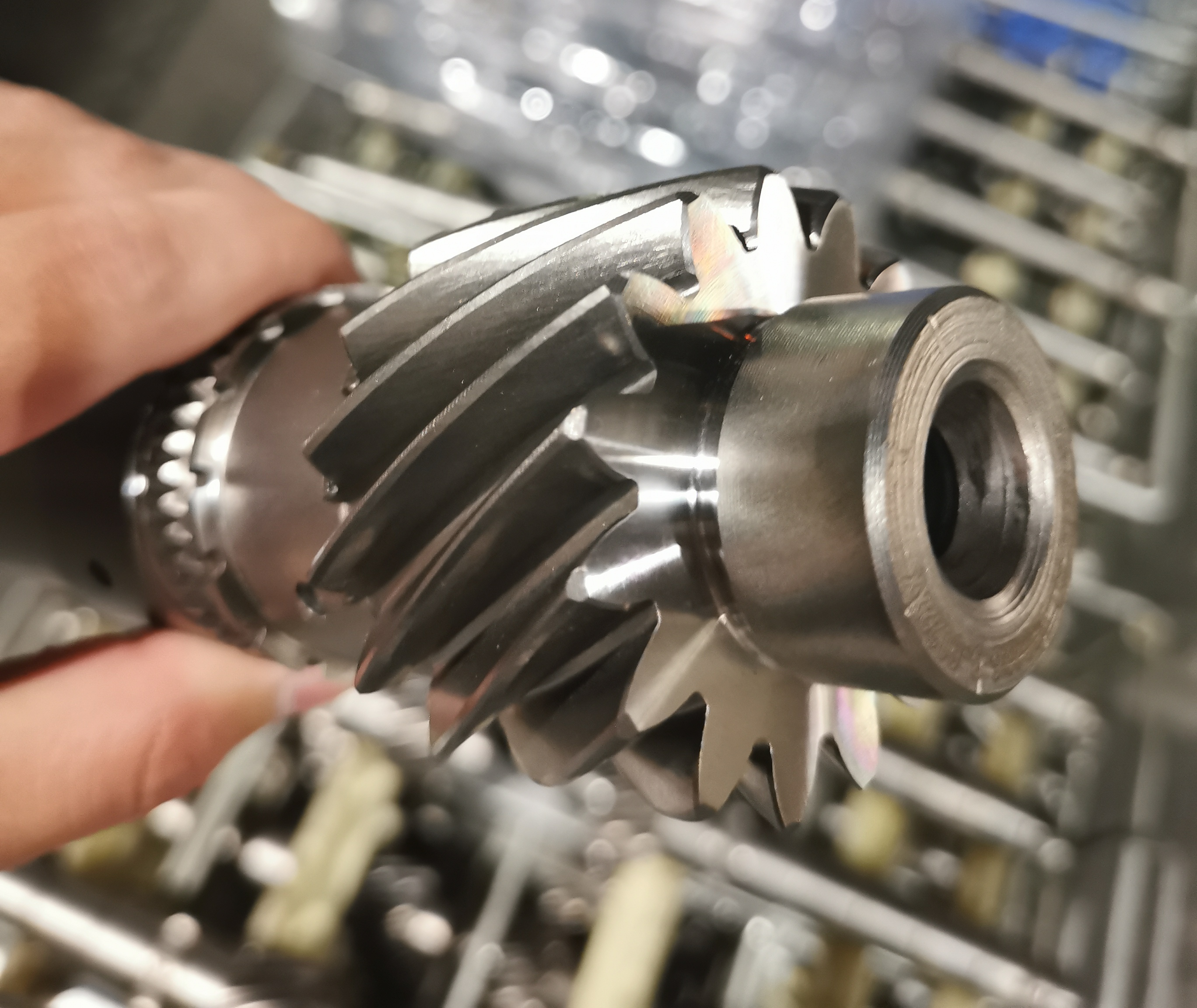

Output shaft gear in 20CrMnTiH material. It is a good performance carburised steel with high hardenability and high low temperature impact toughness, the hardness of the workpiece material is about HRC60, and the machining method is strong intermittent machining.


CBN tool solutions for machining carburised steel materials


WSS has selected chipping-resistant materials and increased chamfering of the cutting edges. During the test, a fixed speed of 800r/min, a feed rate of 0.08mm/r, and a machining allowance of 0.2mm were used to control the machining process. While avoiding chipping, the machining accuracy of the workpiece size is stabilised. At the same time, for the edge of the ultra-fine grinding and polishing, and increase the coating to further enhance the performance of the tool. Extend the machining life of the tool.


In addition, due to the long size of the machined part, one clamp and one top clamping is used to enhance the rigidity of the end of the workpiece, and such clamping is conducive to the improvement of machining accuracy and surface quality.


Processing part: Gear face

Processing part: Gear face


The optimised machining solution has increased tool life by 40% compared to the original, solving the customer's tool machining problems while achieving the need to reduce costs and increase efficiency.
